Forest Road Deactivation Practices
|
in the Pacific Northwest
|
|
|
11 - Partial Sidecast Pullback
|
Description, Expectations |
Description
Partial pullback is carried out when full sidecast pullback is not
necessary for roadfill stability, or when road use is required at some
point in the future. Stable portions of the roadway surface are left
intact as per access management plans for the road. However, in
some cases, partial sidecast pullback may not be sufficient to provide
longterm slope stability.

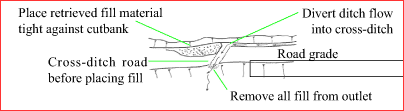

Figure 4: Partial Pullback (Plan View)
Sequence of Placing Retrieved
Pullback Materials Into the Cut
Bottom:
|
road surface materials (rock);
|
Middle:
|
fillslope materials consisting
of overburden and soil;
|
Top:
|
organic debris (slash) and
woody debris, scattered randomly or left on the ground
surface below the road grade.
Always make sure that materials
are sealed tightly against the cut-bank and drained from beneath.
|
|
|
|
Expectations
- Place retrieved fill tightly against the cutslope. If the retrieved fill volumes will fill the cut and you cannot maintain access as prescribed, you must endhaul all excess material.
- Install cross-ditches before placing retrieved fill to ensure that water does not flow into fill material.
- Leave road surfaces intact under the retrieved fill unless otherwise recommended.
- Keep pullback material out of water courses unless you will use cross-ditches, trench drains or french drains in these zones. In some cases, wood box culverts can be left in place if the openings will handle peak flows, and they are backed up by a suitably large cross-ditch.
- Do not inslope or outslope the intact road surface unless directed to do so in the deactivation prescription.

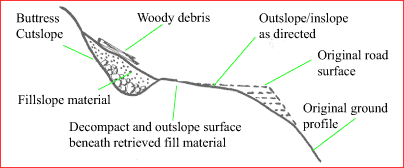

Figure 5: Partial Sidecast Pullback (Cross-Section)
11 - Partial Sidecast Pullback
|
Partial Sidecast Pullback 11
|
|
